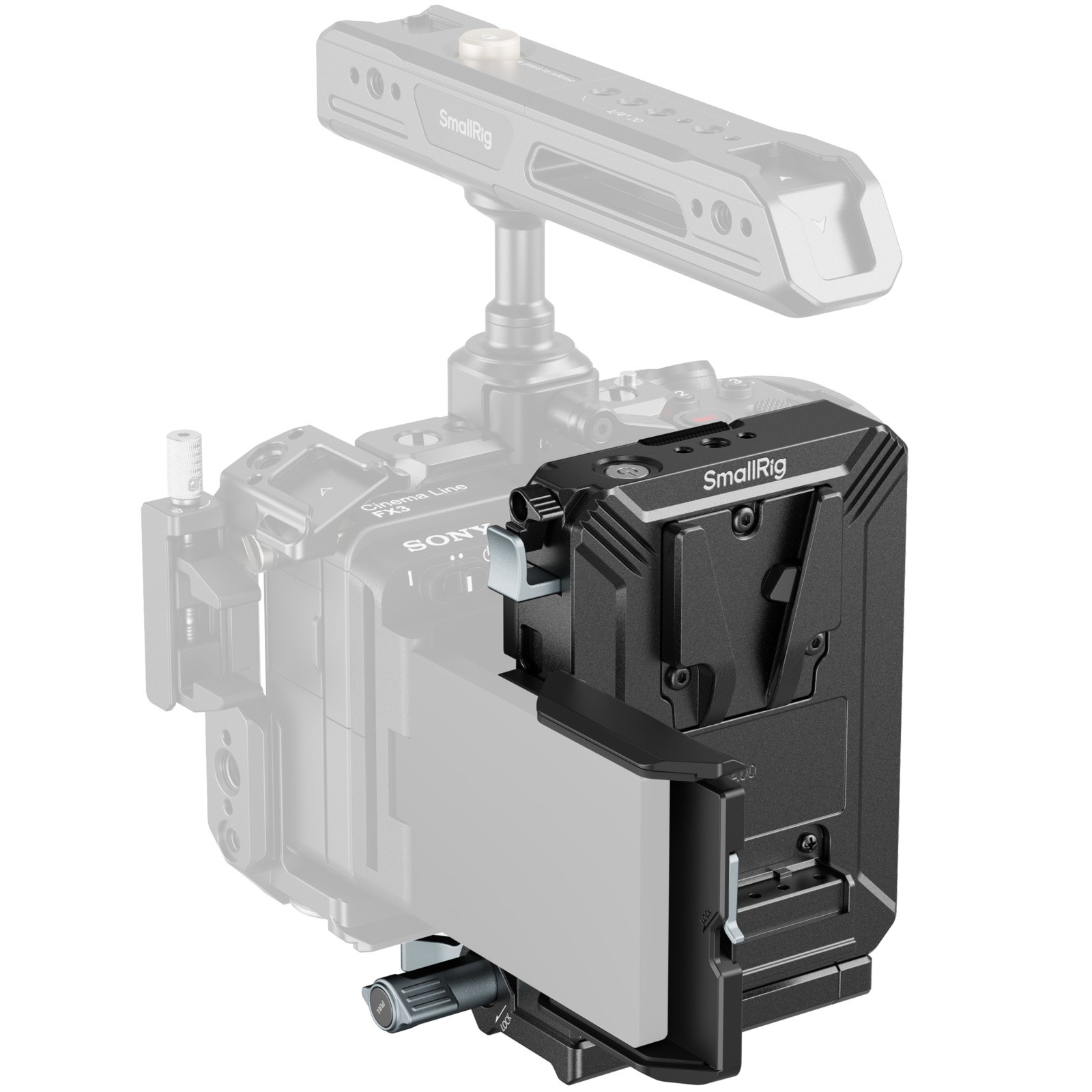

SmallRig V-Mount Battery Mount Plate Kit 5227

Upgrade your camera rig with the SmallRig V-Mount Battery Mount Plate Kit 5227, an all-in-one power management solution designed for professional filmmakers and content creators. Combining a V-mount battery plate, Arca-type quick release system, integrated power hub, and adjustable LCD screen protection bracket, this innovative kit provides a compact and efficient way to power multiple devices while maintaining easy access to your camera controls.

The built-in quick release locking mechanism allows fast installation and removal of V-mount batteries, while the foldable 180-degree rotating design lets you position the battery for comfortable LCD viewing, low-profile shooting, or compact storage. Integrated D-Tap and USB-C PD ports provide simultaneous power for cameras, monitors, wireless video transmitters, follow focus systems, and other filmmaking accessories.

Designed with an Arca-type quick release receiver and plate, the kit integrates seamlessly with compatible camera cages, tripod heads, and support systems. The modular LCD screen protector features tool-free height and width adjustment, helping protect flip-out screens without restricting usability. Cable clips and a hook-and-loop strap keep your rig organized by reducing cable clutter during production.

Constructed from premium aluminum alloy, stainless steel, reinforced polycarbonate, and fiberglass, the SmallRig 5227 delivers exceptional durability while remaining lightweight enough for handheld, tripod, and gimbal workflows.

Key Features

• Professional V-mount battery mounting and power distribution system
• Arca-type quick release plate and receiver for fast camera installation
• Integrated multi-port power hub with D-Tap and USB-C PD connections
• Supports simultaneous powering of multiple devices
• Dual USB-C PD ports support up to 65W input and output
• Three D-Tap output ports for professional accessories
• Foldable 180-degree rotating battery plate for flexible positioning
• Adjustable LCD screen protection bracket with tool-free adjustment
• Secure locking mechanism minimizes movement during operation
• Includes cable clips and hook-and-loop strap for clean cable management
• Lightweight yet durable aluminum alloy and stainless steel construction

Specifications

• Brand: SmallRig
• Model: 5227
• Product Name: V-Mount Battery Mount Plate Kit
• Battery Compatibility: Standard V-Mount Batteries
• Mount Type: Arca-Type Quick Release
• Rotation: 180°
• USB-C Ports: 2 × USB-C PD (Input/Output, up to 65W)
• D-Tap Outputs: 3 × D-Tap
• Materials: Aluminum Alloy, Stainless Steel, Polycarbonate, Fiberglass, Silicone
• Dimensions: Approximately 122 × 104 × 98mm
• Weight: Approximately 453g
• Color: Black

Compatibility

Compatible with:

• Standard V-mount batteries
• Mirrorless cameras
• Cinema cameras
• DSLR camera rigs
• Arca-type tripod heads and camera cages
• External monitors
• Wireless video transmitters and receivers
• Follow focus systems
• LED video lights
• Other accessories powered via D-Tap or USB-C PD

Package Includes

• 1 × SmallRig V-Mount Battery Mount Plate
• 1 × Arca-Type Quick Release Plate
• 1 × Adjustable LCD Screen Protection Bracket
• 1 × Cable Clip Set
• 1 × Hook-and-Loop Cable Management Strap
• 1 × Allen Key
• 1 × User Manual

Important Notes

• V-mount battery is sold separately.
• USB-C ports support both charging and power delivery when used with compatible V-mount batteries.
• Ensure connected accessories do not exceed the maximum power output specifications.
• Verify compatibility with your camera cage or support system before installation.
